Pedestal

SeoHo manufactures pedestals with Aluminum & Steel and they are classified in SD(Standard Duty),HD(Heavy Duty),UD(Ultra Duty),Special Post

and used commonly accoring to requested loads of project at site.

Each product can be finished by Shot Blasting and E-coating and be fixed admantly with using Sub-beam, Concrete, Adhesive and Anchor.

All of pedestals are in accordance with CISCA standard size and used generally from FFH 150mm~1,200mm.

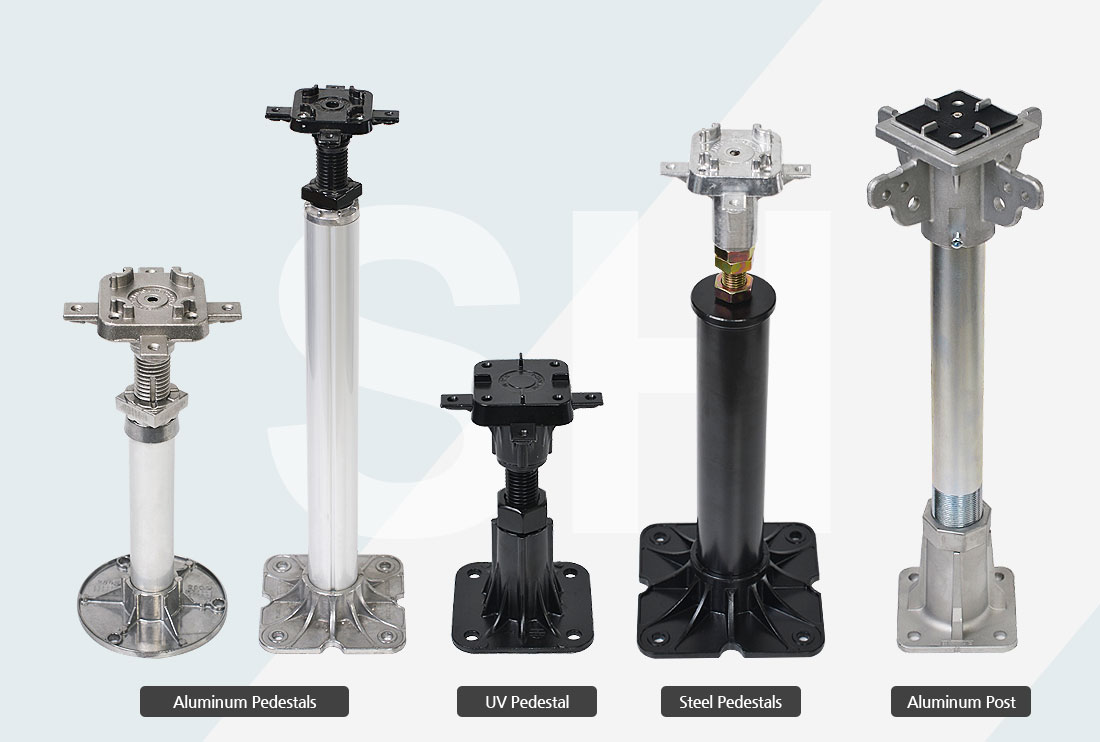

제품 사진

Aluminum Pedestal & Post

Type Model Dimension(mm) Axial Load Finish Type
STANDARD
DUTY (SD)		 250 - 500 113x6.0(AI. Base) + 32.8x3.0(AI. Pipe) + 1”(AI. Stud) + Al. Head ≥ 12, 017Ibs
1. Shot blast
2. E-coating
- Black, Silver Colours
3. Epoxy Powder
- Conductive Powders (Black Colours)
HEAVY DUTY
DUTY (HD)		 500 - 1200 150x7.0(AI. Base) + 50.8x3.0(AI. Pipe) + 1-1/8”(AI. Stud) + Al. Head ≥ 14,350Ibs
POST 500-V.A.R 150x150x106(Base) + Lx5.5T(Pipe) + 100x100x100(Head) ≥ ≥ 10,000kgf Inquiry Needed

Steel Pedestal

Type Model Dimension(mm) Axial Load Finish Type
STANDARD
DUTY (SD)		 150 - 250 100x3.2(Steel Base) + M19(Steel Stud) + Al. Head ≥ 23,000lbs
1. Shot blast
2. E-coating
- Black, Silver Colours
3. Epoxy Powder
- Conductive Powders (Black Colours)
150 - 500 150x4.5(Steel Base) + M24(Steel Stud) + Al. Head ≥ 24,000lbs
HEAVY DUTY
DUTY (HD)		 500 - 800 150x4.5(Steel Base) + 42.7x2.3(Steel Pipe)
+ M24(Steel Stud) + Steel Head 		≥ 25,000lbs
800 - 1200 170x6.0(Steel Base) + 48.6x2.3(Steel Pipe)
+ M24(Steel Stud) + Steel Head 		≥ 26,000lbs
ULTRA DUTY 1200 - 1500 200x9.0(Steel Base) + 60.5x3.2(Steel Pipe)
+ M25(Steel Stud) + Al.UV Head 		≥ 28,000lbs
