Panel

제품 특징

BLIND PANEL

  • - Advanced load endurance capacity
  • - Interchangeable with perforated and grating panels
  • - Various options of finishing materials
  • - Semi-permanent usage through recycling
  • - Excellent processability
  • - Reduced sub-materials (pedestals)
blind panel 이미지
Type Model Dimension(mm) Concentrated Load @ 1/2 Edge Finish Type
STANDARD
  • ALB-639
  • ASB-639
  • ASB-644
  • ASB-648
  • ASB-124
  • 600 x 600 x 39(T)
  • 600 x 600 x 39(T)
  • 600 x 600 x 44(T)
  • 600 x 600 x 48(T)
  • 600 x 600 x 48(T)
  • 500kgf / 2.0mm deflection
  • 600kgf / 2.0mm deflection
  • 800kgf / 2.0mm deflection
  • 1,000kgf / 2.0mm deflection
  • 1,000kgf / 2.0mm deflection
1. PVC Tile
- Conductive Tile
- Static Dissipative Tile
2. E-coating
- Black, Silver Colours
3. Epoxy Powder
- Conductive Powders (Gray, Black Colours)
- Non-Conductive Powders (Ivory, Sliver Colours)
4. Ni-Cr Plating
HEAVY DUTY
  • AHB-639
  • AHB-648
  • AXB-124
  • AHB-242
  • AXB-242
  • 600 x 600 x 39(T)
  • 600 x 600 x 48(T)
  • 600 x 600 x 48(T)
  • 24” x 24” x 1.89”(T)
  • 24” x 24” x 1.89”(T)
  • 700kgf / 2.0mm deflection
  • 1,200kgf / 2.0mm deflection
  • 1,500kgf / 2.0mm deflection
  • 2,000Ibs / 2.0mm deflection
  • 3,000Ibs / 2.0mm deflection

* Specification can be changed in accordance with quality improvement

PERFORATED PANEL

  • - 18%~25% open ratio for a smooth air flow
  • - All tile finished panels with chamfered holes for   maximum air flow
  • - Various options of finishing materials
  • - Semi-permanent usage through recycling
  • - Excellent processability
PERFORATED PANEL 이미지
Type Model Dimension(mm) Concentrated Load @ 1/2 Edge Open Ratio Finish Type
STANDARD
  • ALB-639
  • ASP-639
  • ASP-644
  • ASP-648
  • ASP-124
  • 600 x 600 x 39(T)
  • 600 x 600 x 39(T)
  • 600 x 600 x 44(T)
  • 600 x 600 x 48(T)
  • 600 x 600 x 48(T)
  • 450kgf / 2.0mm deflection
  • 550kgf / 2.0mm deflection
  • 750kgf / 2.0mm deflection
  • 950kgf / 2.0mm deflection
  • 950kgf / 2.0mm deflection
  • 18%-22%(1,296)
  • 18%-22%(1,296)
  • 18%-22%(1,024)
  • 18%-22%(1,296)
  • 18%-22%(1,024)
1. PVC Tile
- Conductive Tile
- Static Dissipative Tile
2. E-coating
- Black, Silver Colours
3. Epoxy Powder
- Conductive Powders  (Gray, Black Colours)
- Non-Conductive Powders  (Ivory, Sliver Colours)
4. Ni-Cr Plating
HEAVY DUTY
  • AHP-639
  • AHP-648
  • AXP-124
  • AHP-242
  • AXP-242
  • 600 x 600 x 39(T)
  • 600 x 600 x 48(T)
  • 600 x 600 x 48(T)
  • 24” x 24” x 1.89”(T)
  • 24” x 24” x 1.89”(T)
  • 650kgf / 2.0mm deflection
  • 1,150kgf / 2.0mm deflection
  • 1,400kgf / 2.0mm deflection
  • 2,000Ibs / 2.0mm deflection
  • 3,000Ibs / 2.0mm deflection
  • 18%-22%(1,296)
  • 18%-22%(1,296)
  • 18%-22%(1,024)
  • 18%-22%(1,296)
  • 18%-22%(1,024)

* Specification can be changed in accordance with quality improvement

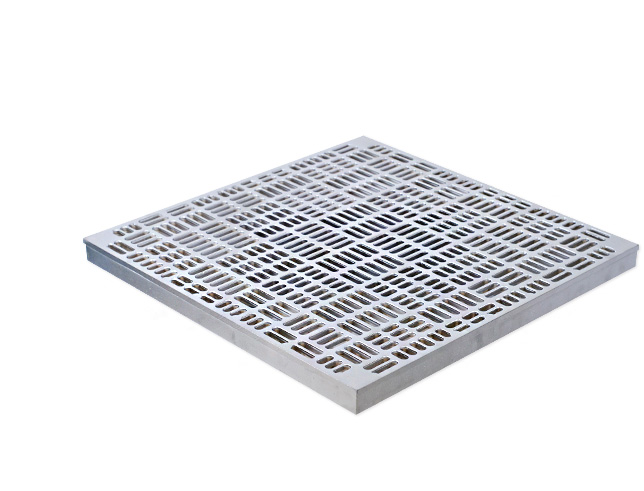

GRATING PANEL

  • - Maximum air flow from 45%~50%
  • - Interchangeable with solid and perforated panels
  • - Available in conductive epoxy powder coating,
      nickel chrome plating and various options of
      other non-conductive colors
  • - Semi-permanent usage through recycling
  • - Exellent processability
PERFORATED PANEL 이미지
Type Model Dimension(mm) Concentrated Load @ 1/2 Edge Open Ratio Finish Type
STANDARD
  • ASG-639
  • ASG-601
  • 600 x 600 x 41(T)
  • 600 x 600 x 41(T)
  • 600kgf / 2.0mm deflection
  • 600kgf / 2.0mm deflection
  • 26%, 45%
  • 51%
1. E-coating
- Black, Silver Colours
2. Epoxy
- Conductive Powders
 (Gray, Black Colours)
 (Ivory, Silver Colours)
3. Ni-Cr Plating
HEAVY DUTY
  • AHG-651
  • AHG-602
  • AHG-604
  • AHG-242
  • 600 x 600 x 50(T)
  • 600 x 600 x 50(T)
  • 600 x 600 x 50(T)
  • 24” x 24” x 1.89”(T)
  • 1,000kgf / 2.0mm deflection
  • 1,000kgf / 2.0mm deflection
  • 1,000kgf / 2.0mm deflection
  • 1,000Ibs / 2.0mm deflection
  • 51%
  • 51%
  • 51%
  • 54%

* Specification can be changed in accordance with quality improvement

ACRYLIC PANEL

  • - Second sight purpose
  • - Easy to maintain at the bottom of panel
  • - Exellent hardness of acryic
  • - Easy to be on and off
  • - Possible to change the acryic size if needed
PERFORATED PANEL 이미지

SUS FINISHED PANEL

  • - Suitable product for move-purpose equipment
PERFORATED PANEL 이미지

ULTRA PANEL

  • - Suitable panel where needed high loads
PERFORATED PANEL 이미지
